Gears

The Gears@claudiux applet allows you to run glxgears with some options.

Click once on this applet to start glxgears; click again to stop it.

Description

The glxgears program is a port of the gears demo to GLX. It displays a set of rotating gears and prints out the frame rate at regular intervals. It has become quite popular as basic benchmarking tool.

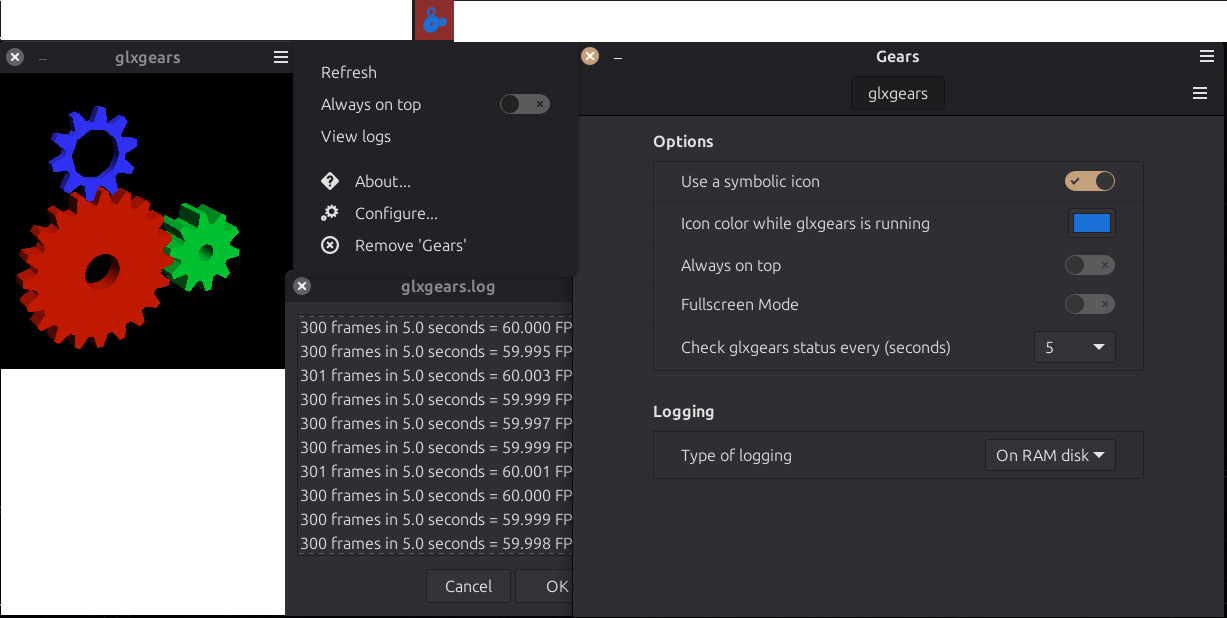

Settings

You can choose:

• Whether or not to use a symbolic icon.
• The color of the icon while glxgears is running.
• If the window containing the rotating gears is still in the foreground (Always on top).
• Whether glxgears should run in full-screen mode or not.
• The time in seconds between two checks of the status of glxgears (running or stopped).
• The type of logging: None, On hard disk, or On RAM disk.

Context menu

The context menu (right-clicking on this applet) allows you to:

• Refresh the status of glxgears (coloring this applet).
• Change the "Always on top" status, as in settings.
• View the logs, when the "Type of logging" is not set to None.

About Logging

There are 3 types of logging:

• None: all messages from glxgears are sent to /dev/null and are therefore lost.
• On hard disk: all messages from glxgears are sent to ~/.config/cinnamon/spices/Gears@claudiux/glxgears.log.
• On RAM disk: all messages from glxgears are sent to $XDG_RUNTIME_DIR/glxgears.log. To know $XDG_RUNTIME_DIR, type echo $XDG_RUNTIME_DIR in a terminal.

The glxgears.log files are deleted each time the applet is started, and are reset each time glxgears is started via the applet.

If you find this applet useful

Please log in via Github and increase the rating of this applet by clicking on the star at the top of this page.

Thank you!

@claudiux
