Graphical System Monitor

Graphical System Monitor

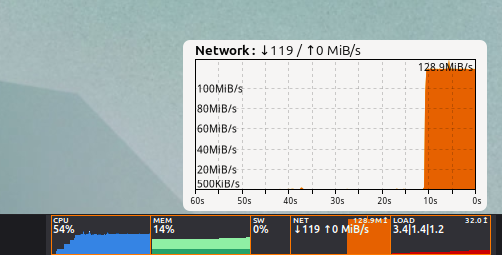

A customizable system monitor showing data and history charts in your cinnamon panel.

Features

• Monitors cpu, memory, swap, network, system load
• Colored chart in the panel along with optional textual values
• Tooltip with large chart containing more history on hover
• Launch system monitor app of your choice on click
• Size and colors fully customizable
• Horizontal/Vertical panel layouts, although the layout will be better on a horizontal one

Prerequisites

This applet uses glibtop to get system resources usage statistics. It may be pre-installed in your distro, otherwise you must install it:

• Ubuntu, Mint

  sudo apt-get install gir1.2-gtop-2.0

• Fedora

  sudo dnf install libgtop2

Notes

This is a fork of sysmonitor@orcus. The main idea was kept, but most of the code was rewritten. Also add graphical tooltips and textual data on the graphs. provider.js was almost kept as is.

Thanks to @orcus for his original work.
