NVIDIA GPU Monitor

UUID: nvidia-gpu-monitor@hierakonpolis
Last edited:
1 week ago 2025-09-25, 06:10
Last commit: [4cfbac88] nvidia-gpu-monitor@hierakonpolis: a desklet plotting GPU usage info over time, memory, compute and temperature (#1581)

Real-time GPU monitoring desklet showing compute usage, memory usage, and optional temperature with customizable colors and update intervals. Features multi-GPU support, error handling, and smooth animations.

README

Close

NVIDIA GPU Monitor Desklet

A real-time GPU monitoring desklet for Cinnamon desktop that displays GPU compute usage, memory usage, and optionally temperature over time. Multi-GPU support is currently untested.

Features

  • Real-time monitoring of GPU compute and memory usage
  • Multi-GPU support - choose which GPU to monitor
  • Temperature monitoring (optional)
  • Historical graphs with configurable data retention
  • Customizable appearance - colors, transparency, size
  • Percentage labels on Y-axis for easy reading
  • Smooth animations and hover effects
  • Error handling with graceful degradation

Requirements

  • NVIDIA GPU
  • nvidia-smi command-line utility installed
  • Cinnamon desktop environment

Configuration

Right-click the desklet and select "Configure" to access settings:

  • Update Interval: How often to sample GPU data (0.1-10 seconds)
  • Data Points: Historical data to keep (60-3600 points)
  • GPU Selection: Choose which GPU to monitor
  • Colors: Customize compute, memory, temperature, background colors
  • Size: Adjust desklet dimensions
  • Display Options: Show/hide legend and temperature

Usage

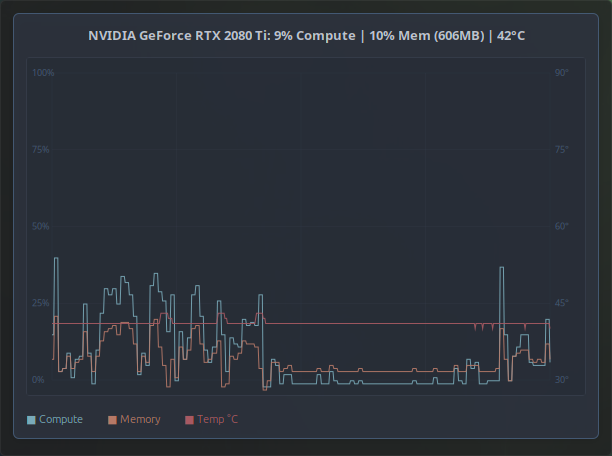

The desklet shows:

  • Real-time GPU usage percentage in the title
  • Historical graph with percentage grid lines
  • Color-coded lines for compute (blue), memory (orange), temperature (red)
  • GPU name and current values in the title bar

Troubleshooting

  • "NVIDIA GPU: Not Available" - Ensure nvidia-smi is installed and working
  • No data - Check GPU index setting matches your system
  • High CPU usage - Increase update interval in settings

Version History

  • v1.0.0 - Initial release

License

Open source - feel free to modify and share!
